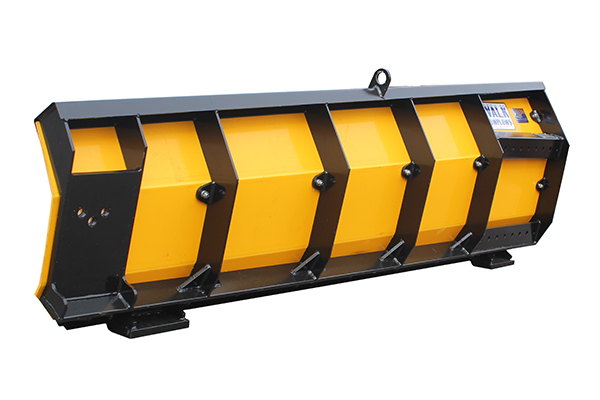

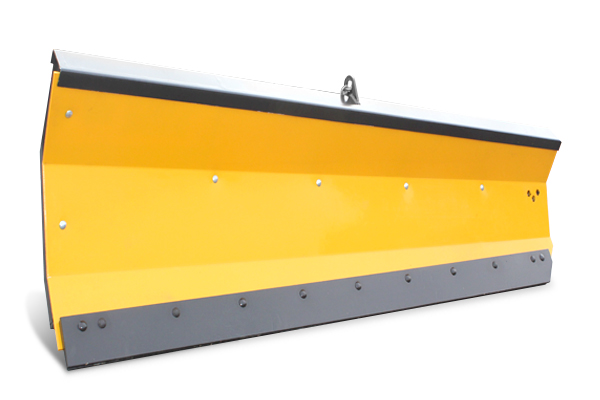

WP-100 Series Patrol Wing Snowplows
Valk's WP-100 Series Patrol Wing Snowplows are designed specifically for F550, 550, 4300 & Terra Star series trucks.
STANDARD FEATURES
- 10 Gauge steel moldboard
- Poly moldboard available
- Full moldboard trip
- Heavy duty bottom angle – fully gusseted
- 1/2" vertical reinforcement ribs
- Free float to follow road contour
- Moldboard height 22” inboard, 32” outboard
- Dual spring cushioned push arms
- Moldboard shoes
- 1/2" x 6” Cutting edge
- 9’ & 10’ Models available
- All hydraulically operated – no cables
| Models Available |
Moldboard |
Cutting Edge |
Nose Heigth |
Discharge Heigth |
Approx Weight |
|---|---|---|---|---|---|
| WP-100-9S | 10 Gauge Steel | 1/2" x 6” x 9’ | 22" |
32" | 530 LBS |
| WP-100-9PE | 3/8” Polyethylene | 1/2" x 6” x 9’ | 22" | 32" | 500 LBS |
| WP-100-10S | 10 Gauge Steel | 1/2" x 6” x 10’ | 22" | 33" | 560 LBS |
| WP-100-10PE | 3/8” Polyethylene | 1/2" x 6” x 10’ | 22" | 33" | 530 LBS |
